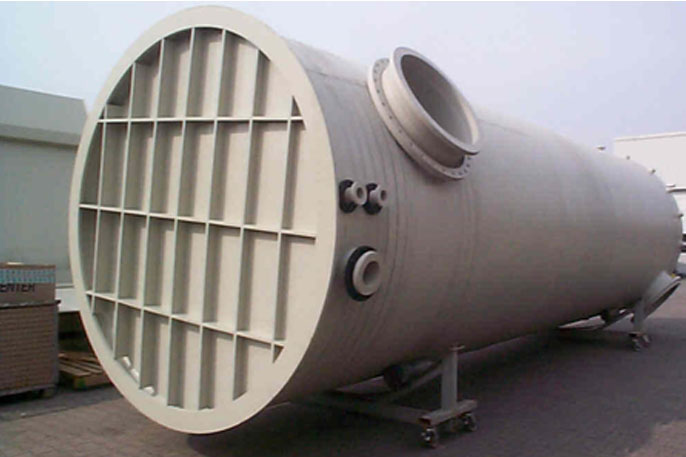

Material
FEP / GRP
Medium
15% active chlorine,
chlorine gas, 30% hydrogen chloride
Dimensions
Ø 2200 x 600 mm
Temperature
100°C
Pressure
- 0,5 / + 3,0 bar
Material
PP / GRP
Dimensions
Ø 2800 / 3200 x 9660 mm
Medium
Trimethylamine, HCI and Ethylenoxid
Dimensions
Ø 1200 x 3500 mm
Temperature
90°C
Pressure
- 1 / + 9 bar
Medium
HCL, CL2, NaOH, H2O
Dimensions
Ø 1000 / 500 x 19000 mm
Temperature
80°C
Pressure
+ 3 bar
Product
40 tanks and apparatus
Material
PP/PVC/PVDF/GRP
Location
Saudi Arabia
Product
HCl Scrubber Head
Medium
Flue Gas with HCl Content
Temperature
200°C
Medium
20 % H2SO4
Dimensions
Ø 2600 x 12900 mm
Temperature
109°C
Pressure
- 0.3 / + 0.5 bar
Medium
Waste gas + liquid
Dimensions
Ø 800 x 12400 mm
Temperature
70°C
Pressure
+ 0.1 bar
Medium
Tanks - HCl, NaCl, OH-, H+
Tower - Cl gas, NaOH, NaOCl
Dimensions
Tank (anolyte) Ø 2500 x 2600 mm
Tank (chlorate) Ø 1600 x 2500 mm
Absorption tower Ø 1200 x 3750 mm
Medium
HCL gas, Anolyt
Dimensions
Ø 2000 x 5775 mm
Temperature
87°C
Pressure
- 0.05 / + 0.2 bar
Medium
HCL gas + 30 % HCL
Dimensions
Ø 1164 x 11616 mm
Temperature
30 °C (operating)/50 °C (design)
Pressure
- 1 / + 7 bar
Medium
20 % H2SO4
Dimensions
Ø 1400 x 1500 mm
Temperature
109°C
Pressure
- 0.3 / + 0.5 bar

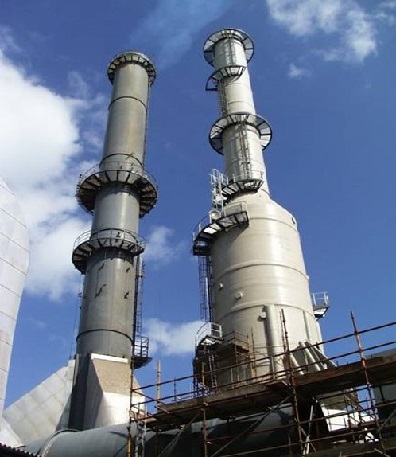

Dimensions
Scrubber - Ø 7500 mm
Stack - 3000 mm
Total height - 60000 mm
