Medium
20 % H2SO4
Dimensions
Ø 2930 – 5403 mm
Temperature
120°C
Pressure
+ 0.5 / - 0.3 bar
Material
PFA/Steel
Medium
HCL, HCL/water dilution
Dimensions
DN 800 – 2800 / 1 m³ - 25 m³
Liner
2.3 mm PFA
Material
PFA/Steel
Medium
HCL, HCL/water dilution
Dimensions
Ø 2000 x 4800 mm
Temperature
40°C / max. 100°C
Pressure
-1.0 / +5.0 bar

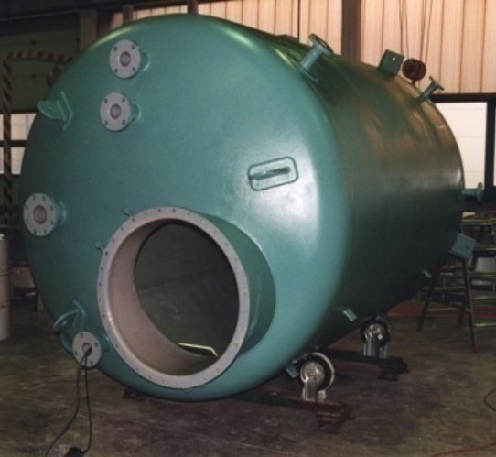

Product
PFA lining
Material
TiO2 Suspension
Medium
Oil and kerosene
Dimensions
Ø 5500 x 5500 mm
Temperature
120°C
Pressure
Atm.

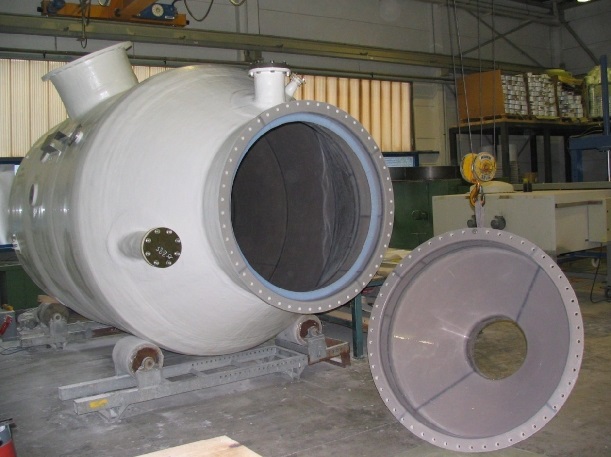

Product
E-CTFE sheet lining
Medium
H2SO4
Dimensions
Ø 2700 x 3600 mm

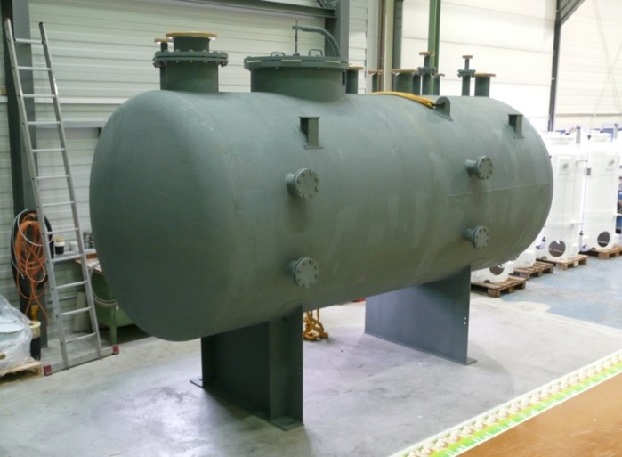

Product
E-CTFE sheet
Dimensions
Ø 1200 x 2000 mm
4x nozzle support Ø 200 mm for injection pipes

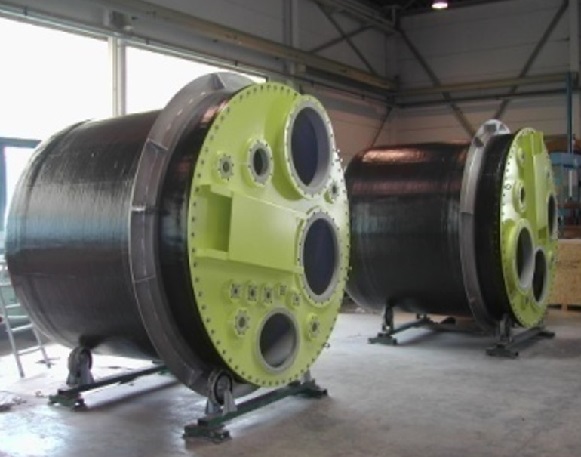

Product
Hybrid design
Components
Top - Carbon steel/ECTFE
Bottom - Halar (ECTFE) liner
Product
MFA/CS
Medium
waste chemicals heated by steam
Dimensions
Ø 3600 mm
Temperature
120°C
Product
MFA Sheet Lining

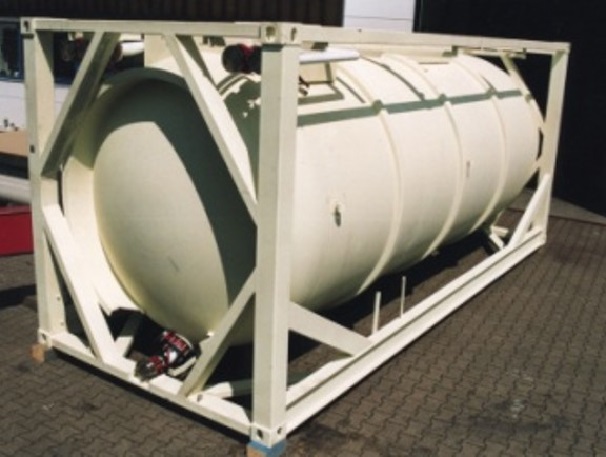

ISO Container

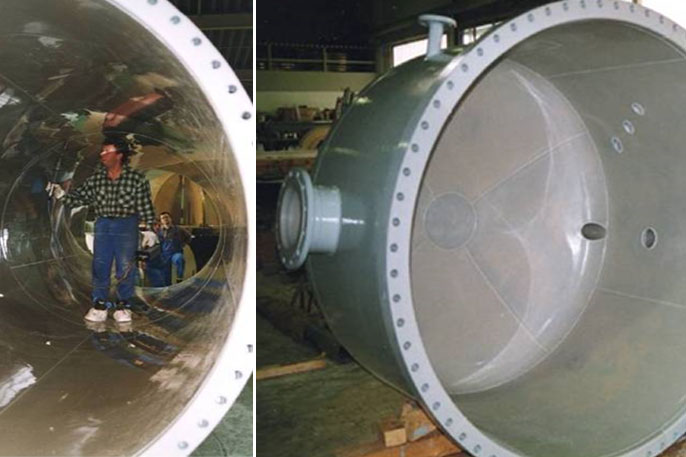

Product
ECTFE/Steel vessel
Material
ECTFE/Steel
Dimensions
Ø 1800 – 9000 mm

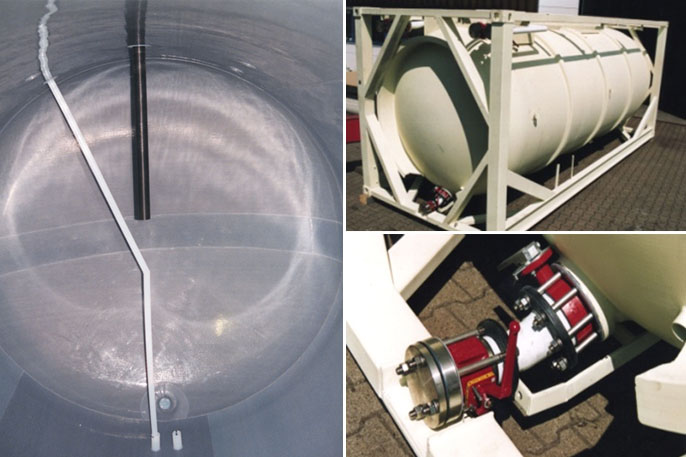

Product
MFA ISO Container
Material
MFA Sheet lining

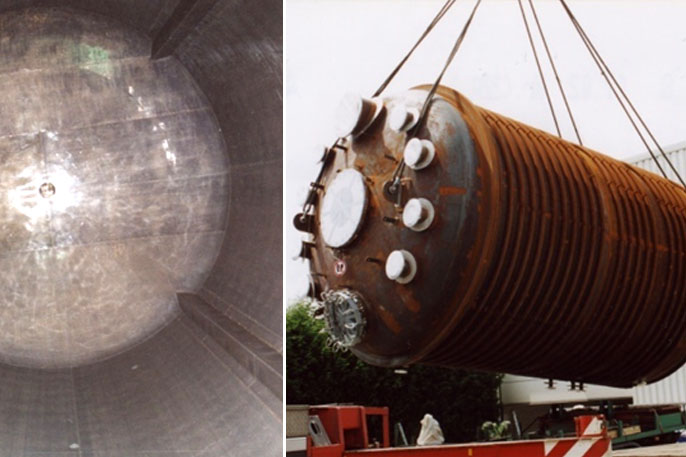

Product
MFA/CS Vessel
Material
MFA/CS
Medium
Waste chemicals heated by steam
Dimensions
Ø 3600 mm
Temperature
120 °C
